Wiring the EG4 Flexboss21 to the Gridboss

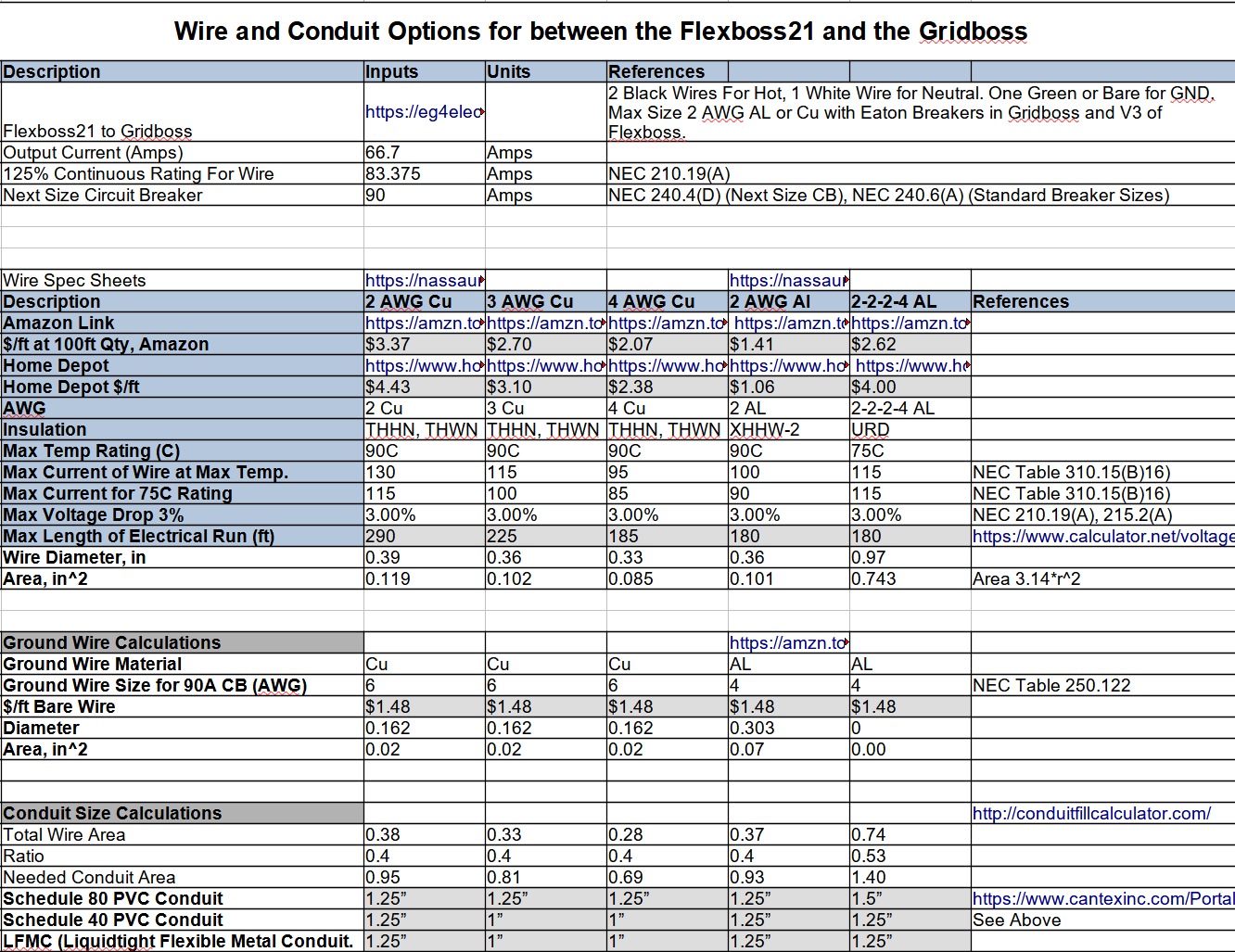

Wire and Conduit Analysis for between the EG4 Flexboss21 and the Gridboss

Option 1: Up to 185ft distance

Copper 4AWG, 2 Black-Hot 1 White-Neutral: https://amzn.to/4hMaEXB, https://www.homedepot.com/p/Southwire-By-the-Foot-4-Black-Stranded-CU-SIMpull-THHN-Wire-20499099/204632882
Copper 6AWG, Ground Wire: https://www.homedepot.com/p/Cerrowire-100-ft-6-Gauge-Green-Stranded-Copper-THHN-Wire-112-4205CR/202564746
Conduit
- Schedule 80 PVC: 1.25” https://www.homedepot.com/p/1-1-4-in-x-10-ft-PVC-Schedule-80-Conduit-67587/100182626
- Schedule 40 PVC: 1.25” https://www.homedepot.com/p/Cantex-1-1-4-in-x-10-ft-Gray-Non-Metallic-PVC-Schedule-40-Conduit-A52BC12H/202352527

Option 2: Up to 225ft distance

Copper 3AWG, 2 Black-Hot 1 White-Neutral: https://amzn.to/47Z4zni, https://www.homedepot.com/p/Southwire-By-the-Foot-3-Black-Stranded-CU-SIMpull-THHN-Wire-24346999/204724930
Copper 6AWG, Ground Wire: https://www.homedepot.com/p/Cerrowire-100-ft-6-Gauge-Green-Stranded-Copper-THHN-Wire-112-4205CR/202564746
Conduit
- Schedule 80 PVC: 1.25” https://www.homedepot.com/p/1-1-4-in-x-10-ft-PVC-Schedule-80-Conduit-67587/100182626
- Schedule 40 PVC: 1” https://www.homedepot.com/p/Cantex-1-in-x-10-ft-Gray-Non-Metallic-PVC-Schedule-40-Conduit-A52BA12H/202352537

Option 3: Up to 290ft distance

Copper 2AWG, 2 Black-Hot 1 White-Neutral: https://amzn.to/47OYXuW , https://www.homedepot.com/p/Southwire-By-the-Foot-2-Black-Stranded-CU-SIMpull-THHN-Wire-20502199/204632781
Copper 6AWG, Ground Wire: https://www.homedepot.com/p/Cerrowire-100-ft-6-Gauge-Green-Stranded-Copper-THHN-Wire-112-4205CR/202564746
Conduit
- Schedule 80 PVC: 1.25” https://www.homedepot.com/p/1-1-4-in-x-10-ft-PVC-Schedule-80-Conduit-67587/100182626
- Schedule 40 PVC: 1” https://www.homedepot.com/p/Cantex-1-in-x-10-ft-Gray-Non-Metallic-PVC-Schedule-40-Conduit-A52BA12H/202352537

Option 4: Up to 180ft distance

AL 2AWG, 2 Black-Hot 1 White-Neutral: https://amzn.to/43bTxIP, https://www.homedepot.com/p/Southwire-By-the-Foot-2-Black-Stranded-AL-USE-2-Cable-27282399/205001798
AL 4AWG, Ground Wire: https://amzn.to/3JGLJbh,
Conduit
- Schedule 80 PVC: 1.25” https://www.homedepot.com/p/1-1-4-in-x-10-ft-PVC-Schedule-80-Conduit-67587/100182626
- Schedule 40 PVC: 1.25” https://www.homedepot.com/p/Cantex-1-1-4-in-x-10-ft-Gray-Non-Metallic-PVC-Schedule-40-Conduit-A52BC12H/202352527

Option 5: Up to 180ft distance

AL 2-2-2-4: https://amzn.to/47UA81H , https://www.homedepot.com/p/Southwire-By-the-Foot-2-2-2-4-Gray-Stranded-AL-SER-Cable-13102999/336468963
Conduit
- Schedule 80 PVC: 1.25” https://www.homedepot.com/p/1-1-4-in-x-10-ft-PVC-Schedule-80-Conduit-67587/100182626
- Schedule 40 PVC: 1.25” https://www.homedepot.com/p/Cantex-1-1-4-in-x-10-ft-Gray-Non-Metallic-PVC-Schedule-40-Conduit-A52BC12H/202352527

Part Category

Part Description:

How To Video:

Note 1: We attempt to find the best balance between quality and price. However, many of these parts are made in China and the quality may vary over time. Please check your parts before the return window ends.

Note 2: When you click links to various merchants on this site and make a purchase, this can result in this site earning a commission.
